Appium Setup with Eclipse

Setting up appium with eclipse for windows is very simple and this post further simplifies it. While Reading the post follow the instructions step by step and you will be ready with your setup.

Video Tutorial -

1. Install Java Development Kit (JDK)-

The Java Software Development Kit (Java SDK or JDK) is an application created by Sun Microsystems to create and modify Java programs.To install that  go to THIS LINK. Download the latest version of java and install it.

2. Setup Java Environmental Variable Path  -

Go to to Start Menu and searach for 'Environmental variable' and click on it. Then Click on Environmental variable and add New System Variable with variable name as JAVA_HOME and classpath as your jdk path

3. Install Eclipse

Download Eclipse from This LINK .
Click on .exe file.

Eclipse Installation

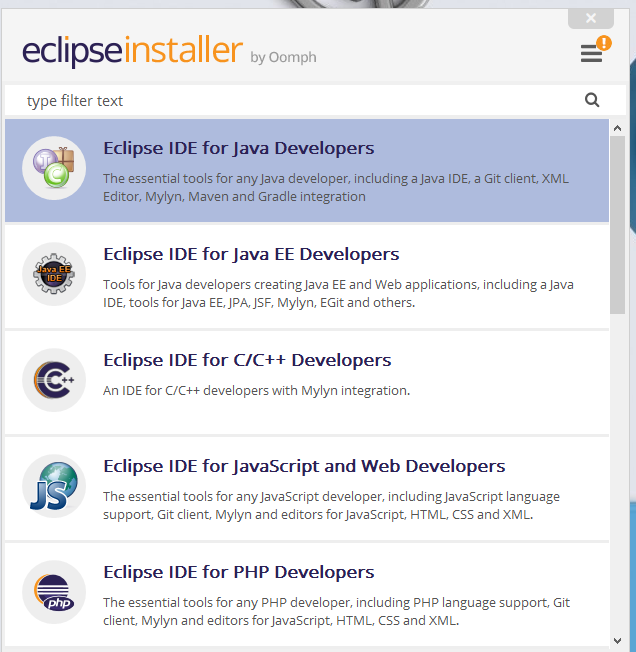

Eclipse Installer

Select Eclipse IDE for Java Developers option.

Eclipse Installation

Then Accept the Terms and Conditions

Eclipse Installation

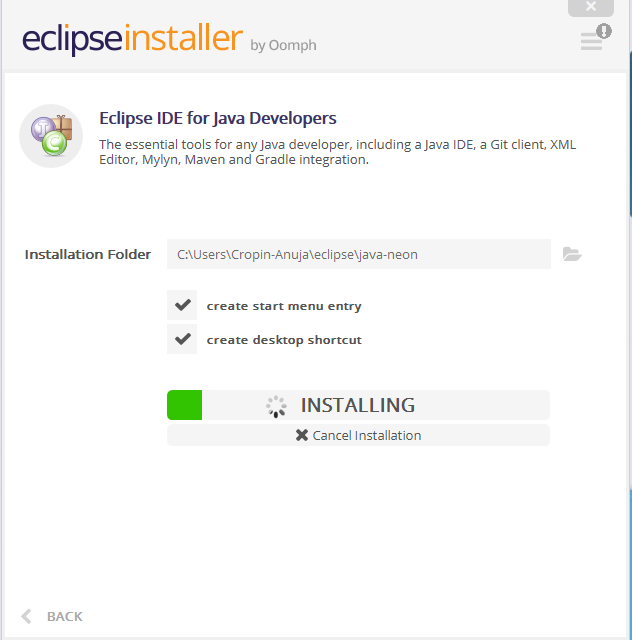

Eclipse will be installed

4. Download and Install Appium sever

Download Appium Server from this Link
Click on .exe file.

Appium Server Installation

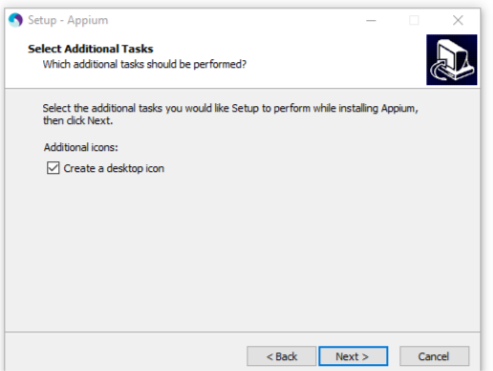

Select Desktop Icon creation checkbox

Install Appium Sever

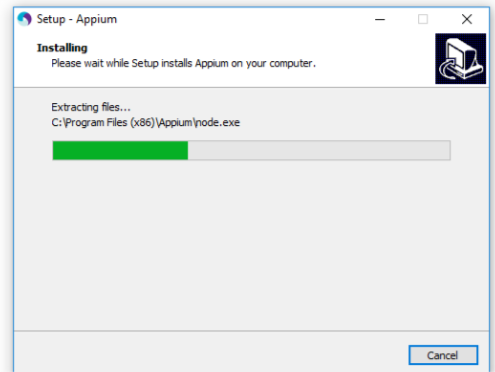

Click on Install
Install Appium

Give the Path

Appium Setup

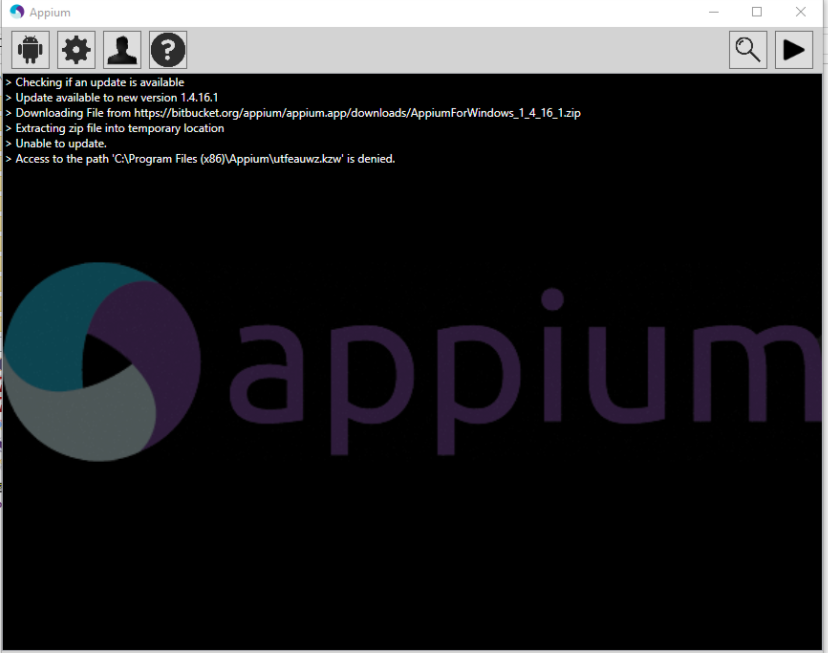

Launch and check the Appium Sever
Appium Setup

5. Download Selenium Client Jars

Download the selenium jars from HERE and unzip the folder. Remember to download selenium client for Java.

6. Download Appium Java Client

Download the selenium jars from HERE and unzip the folder.Remember to download appium client for Java.

 7. Appium Setup in Eclipse

Create new project

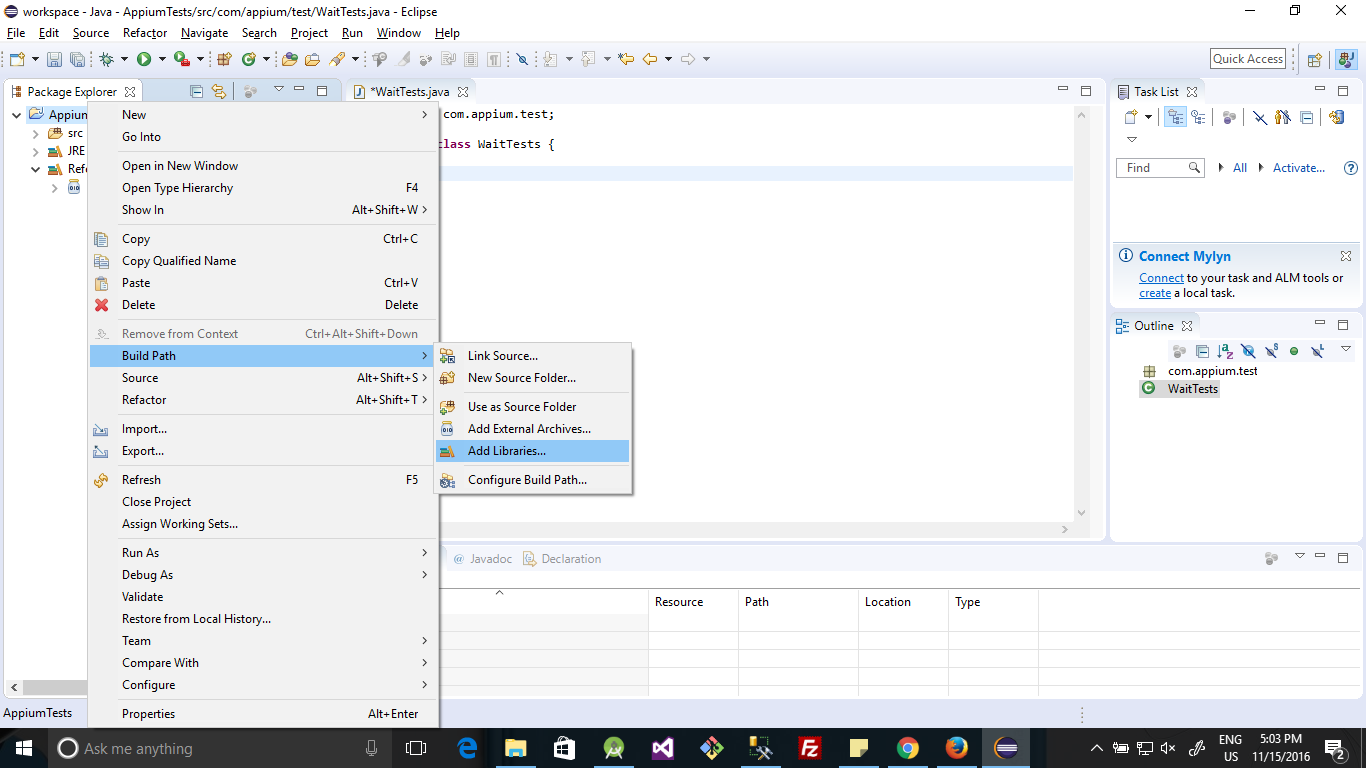

Right click on the project click on Build Varient -> Add External Archieves -> Add all jars of selenium client folder and Java Client folder

Appium with Eclipse

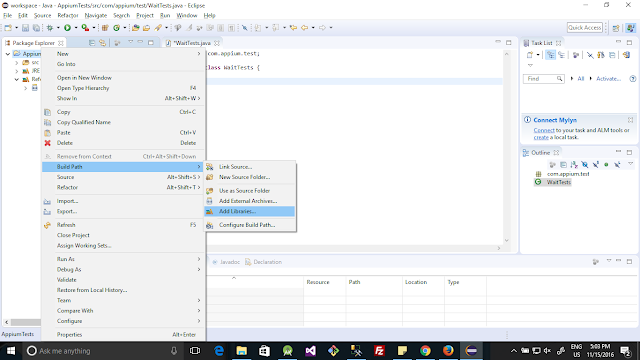

Click on Add Libraries -> Junit and add Junit Library.
Appium Setup with Eclipse Project

I Hope your are done with your Setup now. Sit back relax and start exploring appium tutorial for writing test cases.Please share your feedback in the comment section below and follow me on social media for latest post updated.
